Spreader Basket Cable 0.6/1kV With Lead Shot
Spreader Basket Cable 0.6/1kV
with Lead Spot

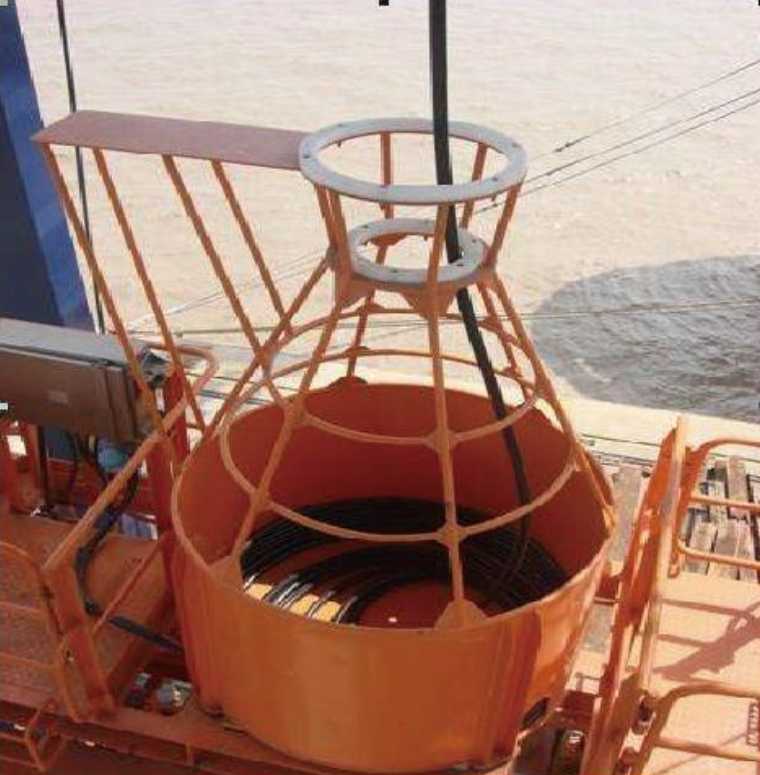

Engineered for large hoisting machinery that relies on basket type cable storage and frequent vertical lifting, this spreader basket cable delivers reliable performance under harsh conditions. It is particularly suitable for humid and seaside (coastal) environments, where vertical cable movement places continuous stress on the cable.
As a dedicated UV resistant spreader basket cable, it withstands prolonged sun exposure, ozone, and hydrolysis. Whether deployed on container cranes or ship unloaders, this spreader basket cable for port machinery is collected in baskets and vertical hoisting systems with repeated up and down travel, ensuring reliable and durable performance where mechanical stress, abrasion, and oils are constant challenges.
Key Features
With Lead Spot
UV, Ozone and Hydrolysis Resistant
resistance to abrasion, oils, and mechanical stress
For outdoor environments, including seaside locations
Maximum Travel Speed：180M/minute
Specifications
Voltage Rating: 0.6/1kV
Conductor: Class 5 Copper, meet standard IEC60228
Insulation: PVC
Grounding Core: semiconductor material
Core Structure: Group stranding (optimal lay length)
Counterweight: lead spot chain
Outer Sheath: TMPU
Color: Black
Working Temperature: Flexible installation: -25℃~70℃
Fixed Cable Installation-40℃~90℃
Test Voltage: 3500V
Mini. Bending Radius: 15×Cable Outer Diameter
Flame Retardant: IEC60332-1
Standard: VDE0250P813 MT818
CE, ROSH
Number of cores x cross section | Outer diameter mm | Copper Weight kg/km | Cable Weight kg/km |
|---|---|---|---|
| 24×2.5 | 34.5 | 587 | 2100 |
| 30×2.5 | 35.5 | 734 | 2350 |
| 36×2.5 | 39 | 880 | 2750 |
| 42×2.5 | 43 | 992 | 3530 |
| 48×2.5 | 46.2 | 1134 | 4030 |
| 54×2.5 | 52 | 1276 | 4500 |
We offer solutions tailored to specific customer requirements.
Applications
Port Machinery (quayside container cranes, ship unloaders)
Energy & Mining (stacker-reclaimers, bucket-wheel stacker-reclaimers)
Heavy Engineering Machinery (large bridge cranes, crawler cranes)
Offshore Equipment (suitable for humid and salt-spray environments in near-shore operations)
Ordering Information
MOQ: project-based negotiation
Standard Lead Time: 4-10 weeks after order confirmation
Customization: Fully supported
