Custom ROV Cable for Reliable Underwater Operations
ROV umbilical cables with Pneumatic Tube, combine air or gas transmission tubes with power, fiber optic and signal conductors in a compact cable structure for underwater control and monitoring systems. The ROV cables are commonly used in inspection ROVs, scientific instruments, subsea sensors and offshore equipment requiring reliable pneumatic control in dynamic marine environments. For underwater robotic applications, pneumatic transmission can be integrated into a complete ROV Umbilical Cable solution.
RouLine provides fully customized pneumatic umbilical cable solutions with flexible tube configurations, electrical and optical integration, and durable jacket materials engineered to meet your specific application, installation and environmental requirements. For projects requiring integrated power, fiber optics and fluid transmission, explore our Hybrid Subsea Cable solutions.
Custom Cable Solutions | Flexible MOQ | Fast Lead Time |
Key Features
Tensile Strength: from 0 to 8 tonnes
Pneumatic Control: High pressure pneumatic control hoses
Extensive Range: 1 to 60 cores
Conductor Cross-Sections: 0.08 mm² to 35 mm²
Other Options: Water Tightness Compound / Sealant / Water-Blocking Yarn
Corrosion Resistance:resistance to hydrolysis, corrosion, abrasion, and ultraviolet light.
Specifications
Parameter | Specification |
Cable Type | ROV Umbilical Cable |
Conductor | Tinned copper, Class 5 flexible copper |
Conductor Standard | IEC 60228 |
Conductor Cross-Section | 1.5–120 mm² |
Insulation | EPR , DPEM , TPE, XLPE, |
Core Structure | Anti-twist layering, grouped gap filling, twisted pairs, layered binding |
Optical Fiber | Single-mode / Multimode, 6–24 fibers |
Shielding | Tinned copper braid, 360° EMI/RFI shielding |
Tensile Member | Central Kevlar core and interstitial Kevlar filler |
Outer Sheath | Extruded polyurethane (PUR) |
Rated Voltage | 300V ~ 1 kV (for higher voltage, please contact) |
Insulation Resistance | ≥20 MΩ·km at 20°C |
Operating Temperature | −30°C to +90°C |
Hydraulic Lines | Optional |
Pneumatic Lines | Support |
Strain Gauges | Optional |
Bend Restrictors | Customized |
Length Marking | Customized |
We offer solutions tailored to specific customer requirements.

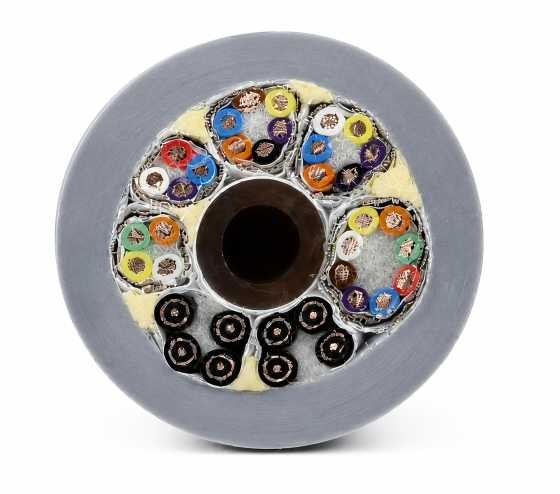

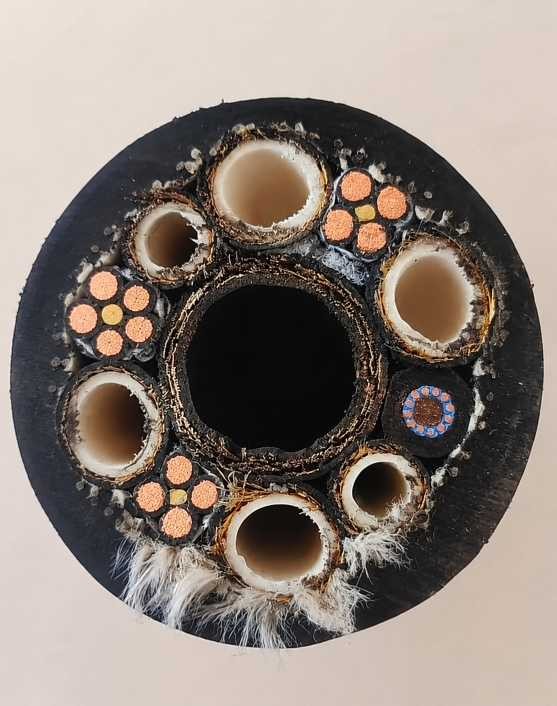

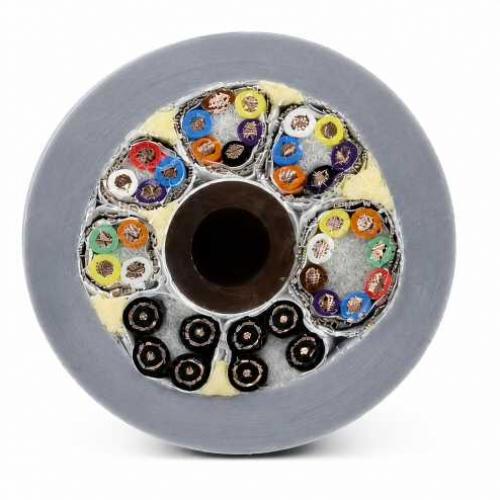

Product Gallery
Applications
The Pneumatic ROV Umbilical Cable is designed for demanding subsea and marine applications, including:
↗Subsea Mining Operations
↗Marine Seismic Survey Systems
Quality Testing & Control | Manufacturing Process |
Manufacturing Process
→Cable Core Assembly Process →Wire Stranding Process →Kevlar braiding process
RouLine ROV cables are manufactured according to project-specific requirements, from conductor and reinforcement selection to cable assembly, forming, testing, and final inspection.
Videos of ROV Cable Manufacturing →
Test Equipment
Industrial cables manufactured by RouLine are inspected using dedicated equipment for electrical, mechanical, and environmental testing. Depending on the cable design, testing may include high-voltage testing, insulation and continuity checks, tensile testing, flexing, temperature-humidity, salt-spray, and dimensional inspection. Testing procedures can be defined according to cable construction, operating depth, voltage rating, mechanical requirements, and applicable standards. →View the Test Equipment in Use
Ordering Information
Standard Lead Time: 3-6 weeks after order confirmation
Customization: Fully supported
