Shielded Festoon Cable, Flat, 0.6/1kV
Flat Festoon Cable 0.6/1kV
Shielded / Screened
A weather-resistant shielded flat festoon cable designed for crane equipment, ground conveyor systems, and trolley control units. It ensures reliable operation in harsh environments such as construction sites, port facilities, offshore platforms, and similar demanding applications.

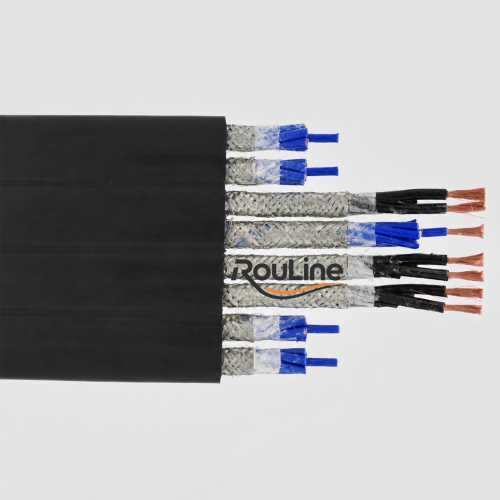

This weather-resistant crane flat festoon cable and port crane cable features bare copper or tinned copper wire braid shielding (individual core or overall) to ensure EMC‑compliant, interference‑free signal transmission. It is also a reliable high salt spray cable for coastal and marine environments, an EMC compliant festoon cable for VFD systems, and compatible with standard festoon systems (C‑track, I‑beam).
Key Features
High flexibility
Small bending radius
UV, Ozone and Hydrolysis Resistant
resistance to abrasion, oils, and mechanical stress
For outdoor environments, including seaside locations
Maximum Travel Speed：180M/minute
Core shielding ensures interference‑free transmission of all signals.
EMC compliance
Specifications
Voltage Rating: 0.6/1kV
Conductor: Class 5 Copper, meet standard IEC60228
Insulation: EPDM
Core Structure: 3 cores plus a green/yellow earth core,
arranged in parallel
Shielding with bare copper or tinned copper wires, available as individual core screening or overall collective shielding
Outer Sheath: CR
Color: Black
Working Temperature: Flexible installation: -25℃~70℃
Fixed Cable Installation-30℃~80℃
Test Voltage: 3500V
Mini. Bending Radius: 7×Cable Outer Diameter
Flame Retardant: IEC60332-1
Standard: VDE0250P812
VDE0250P813GB/T5013
CE, ROSH
Number of cores × cross section | Outer diameter mm | Copper Weight kg/km | Cable Weight kg/km |
|---|---|---|---|
| 4×1.5 | 20×8.5 | 108 | 252 |
| 6×1.5 | 29×10 | 161 | 391 |
| 8×1.5 | 39×10 | 214 | 503 |
| 4×2.5 | 23×8.8 | 151 | 345 |
| 6×2.5 | 33.5×10.5 | 227 | 513 |
| 8×2.5 | 42×10.5 | 302 | 695 |
| 12×2.5 | 68×11 | 453 | 1072 |
| 4×4 | 28.5×10 | 218 | 480 |
| 4×6 | 31×11.5 | 304 | 618 |
| 4×10 | 38.5×14 | 482 | 944 |
| 4×16 | 44×14.5 | 722 | 1278 |
We offer solutions tailored to specific customer requirements.
Applications
This product is widely used in the following Crane and Hoisting equipment applications:
Overhead / gantry crane trolley power supply
Port crane auxiliary festoon systems
Crane control pendant / trolley control unit
Ground conveyor moving power supply
Automated stacker / shuttle car
Grab crane control cable (waste-to-energy plants)
Factory automation moving workstations
Ship loader / bucket wheel reclaimer trolley festoon
View all crane & hoisting application solutions
Ordering Information
MOQ: project-based negotiation
Standard Lead Time: 4-10 weeks after order confirmation
Customization: Fully supported
