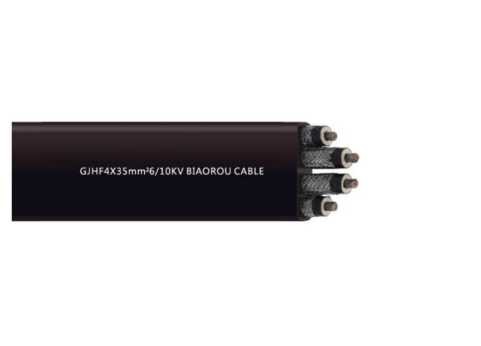

Reeling Cable, Flat Cable，6/10kV

Our flat medium voltage reeling cables are designed for reliable power transmission in heavy-duty cable reeling systems, supporting continuous winding and unwinding in demanding industrial environments. The flat construction is suitable for installations with limited space and specific cable routing requirements, including port cranes, ship unloaders, and bulk material handling equipment.

As a custom flat power reeling cable manufacturer, RouLine offers flexible configurations for conductor size, voltage rating, insulation, outer sheath, and mechanical reinforcement to meet different equipment requirements. Our industrial reeling cables are engineered around the application’s electrical load, reeling travel, operating speed, and environmental conditions.

Custom Cable Solutions |       Flexible MOQ |       Fast Lead Time |

Key Features

Harsh Environmental Resistance  UV, ozone, hydrolysis & moisture resistant

Mechanical Strength  Resistant to tensile stress, pressure & abrasion

Marine Ready  Saltwater & corrosive coastal environments

High Travel Speed  Up to 120 m/min

High Tensile Capacity  Approx. 15 N/mm²

Corrosion Resistant  Designed for harsh, humid environments

Certified Quality  VDE 0250 P813 & MT818

Specifications

We offer solutions tailored to specific customer requirements.

Applications

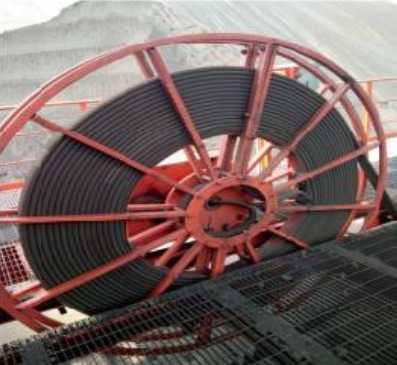

Our flat medium voltage reeling cables are designed for mobile industrial equipment requiring reliable power transmission during continuous cable winding and unwinding. These flat reeling power cables are suitable for demanding applications such as port and quayside cranes, bulk material handling equipment, and overhead and gantry cranes.

As a custom flat power reeling cable manufacturer, RouLine provides application-specific cable configurations to meet different voltage ratings, power loads, reeling distances, mechanical stresses, and operating environments, supporting reliable performance in heavy-duty industrial cable reeling systems.

↗ Port Cranes & Container Handling

↗ Overhead & Gantry Cranes

↗ Bulk Material Handling Equipment

Case Study

Reeling Cable Project for Tianjin Port

Quality Testing & Control |      Manufacturing Process |

Manufacturing Process

RouLine industrial cable manufacturing process covers conductor preparation, insulation and sheath extrusion, reinforcement, cable assembly, and final testing and inspection. As a custom industrial cable manufacturer, RouLine adapt cable structures, materials, and production processes to meet specific electrical, mechanical, and environmental requirements. The following stages demonstrate our manufacturing capabilities and quality control procedures for reliable industrial cable solutions.

→Cable Core Assembly Process           →Wire Stranding Process                      →Kevlar Braiding Process

Test Equipment

Industrial cables manufactured by RouLine are inspected using dedicated equipment for electrical, mechanical, and environmental testing. Depending on the cable design, testing may include high-voltage testing, insulation and continuity checks, tensile testing, flexing, temperature-humidity, salt-spray, and dimensional inspection. Testing procedures can be defined according to cable construction, operating depth, voltage rating, mechanical requirements, and applicable standards.  →View the Test Equipment in Use

Ordering Information

Customization: Fully supported

MOQ: project-based negotiation

Standard Lead Time: 3-6 weeks after order confirmation

Custom Development Works

FAQs

1. What is a flat medium voltage reeling cable used for?

Flat medium voltage reeling cables are used for power supply in port cranes, ship unloaders, stacker-reclaimers, and other heavy-duty mobile equipment requiring reliable power transmission through cable reeling systems.

2. What voltage ratings are available for flat medium voltage reeling power cables?

This flat medium voltage reeling cable is rated at 6/10kV. Other voltage ratings and cable configurations can be evaluated according to equipment requirements and application conditions.

3. What insulation and sheath materials are used in flat medium voltage reeling cables?

This cable uses EPR insulation with strippable semiconducting layers, tinned copper wire braid screening, and an abrasion-resistant rubber outer sheath for demanding industrial environments.

4. What conductor sizes are available for flat medium voltage reeling cables?

Available configurations include 4 × 25 mm², 4 × 35 mm², and 4 × 50 mm² Class 5 copper conductors. Custom conductor sizes can be discussed based on electrical load and cable design requirements.

5. How do you select a flat reeling power cable for heavy-duty industrial equipment?

Selection depends on voltage rating, current load, reeling distance, bending radius, travel speed, tensile stress, and environmental conditions. These factors help determine the appropriate flat power reeling cable construction.

6. Can you manufacture custom flat medium voltage reeling cables?

Yes. As a custom industrial reeling cable manufacturer, we can evaluate conductor sizes, insulation systems, screening, rubber sheath compounds, cable dimensions, and other design requirements for specific reeling applications.
