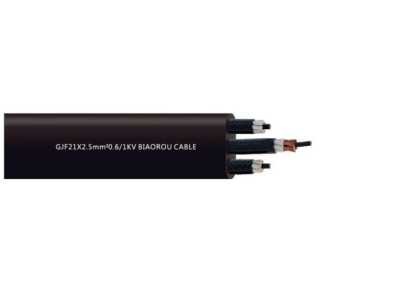

Flat Reeling Cable, Port Crane Cable 0.6/1kV
Reeling Cable, Flat Cable, 0.6/1kV
Our Flat Power and Control Reeling Cables integrate power conductors and control cores into a single flexible flat cable, providing reliable power supply and control signal transmission for moving industrial equipment. Designed for cable reel systems, RouLine custom flat reeling cables can be tailored to different voltage ratings, conductor sizes, core configurations, and operating conditions. As an industrial cable manufacturer, we provide customized cable solutions to meet specific equipment and installation requirements.
Custom Cable Solutions | Flexible MOQ | Fast Lead Time |
Key Features
High Flexibility Continuous reeling & bending
Harsh Environmental Resistance UV, ozone, hydrolysis & moisture resistant
Mechanical Strength Resistant to tensile stress, pressure & abrasion
Marine Ready Saltwater & corrosive coastal environments
High Travel Speed Up to 150 m/min
High Tensile Capacity Approx. 15 N/mm²
Corrosion Resistant Designed for harsh, humid environments
Certified Quality VDE 0250 P813 & MT818
Specifications
Specification | Description |
Voltage Rating | 0.6/1kV |
Conductor | Class 5 Copper, meeting IEC 60228 |
Core Identification | Black cores with continuous white numbers; includes a green/yellow (G/Y) protective earth core from 3 cores upwards |
Core Arrangement | Parallel lay-flat construction |
Insulation | Specially formulated EPDM |
Outer Sheath | Polychloroprene (CR) compound, self-extinguishing |
Color | Black (RAL 9005) |
Working Temperature | Reel-based cable installation: -30°C to +80°C; Fixed cable installation: -40°C to +90°C |
Test Voltage | 3500V |
Minimum Bending Radius | 10 × Cable Outer Diameter |
Flame Retardant | IEC 60332-1 |
Standard | VDE 0250 Part 813; MT 818 |
Compliance | RoHS Compliant |
Number of Cores × Cross Section (mm²) | Outer Diameter (mm) | Copper Weight (kg/km) | Cable Weight (kg/km) |
4×1.5 | 17.0×7.5 | 55.5 | 192 |
6×1.5 | 25.0×8.0 | 83.3 | 303 |
8×1.5 | 32.0×8.0 | 111 | 387 |
4×2.5 | 21.0×8.0 | 89 | 274 |
6×2.5 | 29.5×9.5 | 134 | 406 |
8×2.5 | 38.0×9.5 | 178 | 553 |
4×4 | 25.0×9.0 | 146 | 395 |
5×4 | 29.5×9.0 | 183 | 478 |
4×6 | 28.0×10.0 | 219 | 518 |
4×10 | 35.0×12.0 | 374 | 814 |
4×16 | 40×13.5 | 595 | 1152 |
We offer solutions tailored to specific customer requirements.

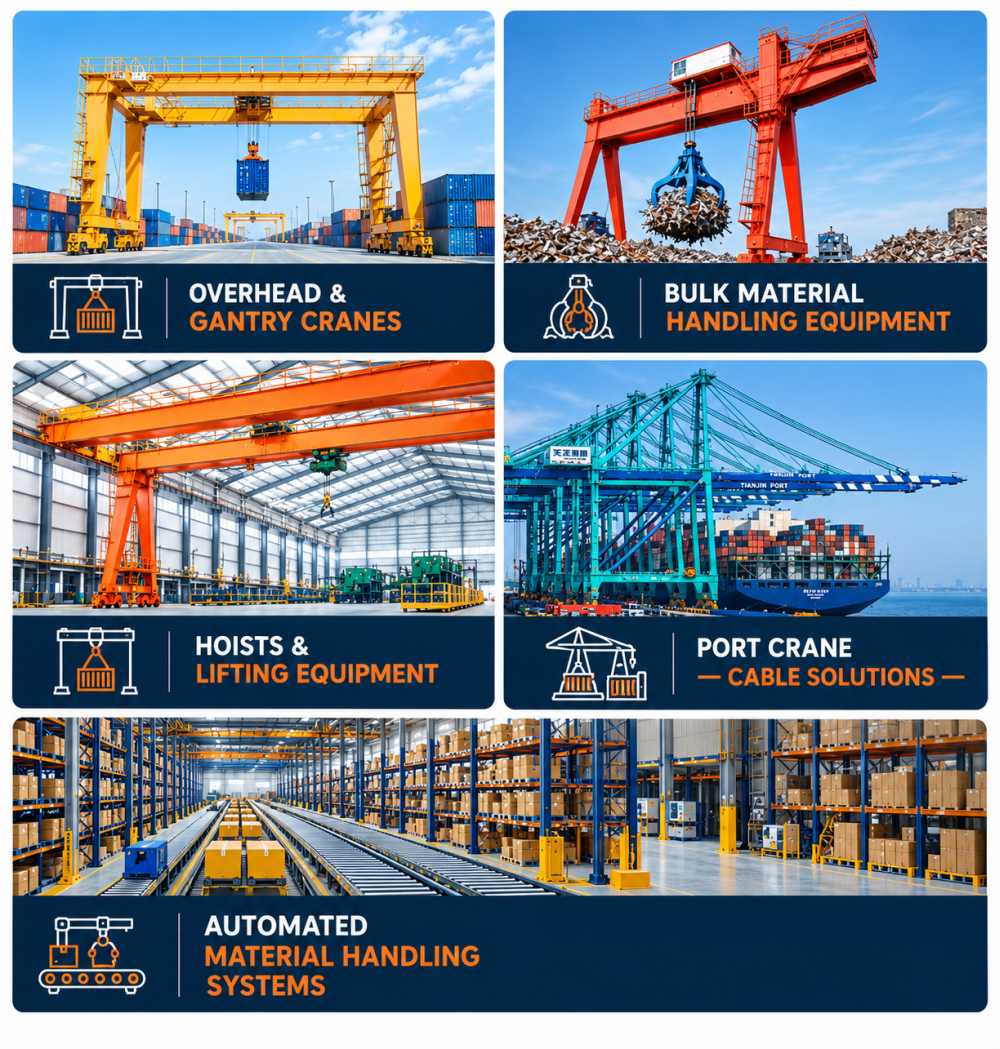

Applications
Flat power and control reeling cables are widely used in industrial cable reel systems where equipment requires both electrical power and control signals during continuous movement. Their flat construction supports organized cable winding and unwinding in applications such as port cranes, overhead and gantry cranes, and bulk material handling equipment. Cable design can be customized according to travel distance, reeling speed, mechanical stress, and the electrical requirements of the equipment.
↗ Port Cranes & Container Handling
↗ Overhead & Gantry Cranes
↗ Bulk Material Handling Equipment
↗ Hoists & Lifting Equipment
↗ Automated Material Handling Systems
Case Study
A custom reeling cable solution engineered for Tianjin Port crane system, power transmission, high dynamic flexibility, tensile strength, and marine environmental resistance.
Reeling Cable Project for Tianjin Port
Quality Testing & Control | Manufacturing Process |
Manufacturing Process
RouLine industrial cable manufacturing process covers conductor preparation, insulation and sheath extrusion, reinforcement, cable assembly, and final testing and inspection. As a custom industrial cable manufacturer, RouLine adapt cable structures, materials, and production processes to meet specific electrical, mechanical, and environmental requirements. The following stages demonstrate our manufacturing capabilities and quality control procedures for reliable industrial cable solutions.
→Cable Core Assembly Process →Wire Stranding Process →Kevlar Braiding Process
Test Equipment
Industrial cables manufactured by RouLine are inspected using dedicated equipment for electrical, mechanical, and environmental testing. Depending on the cable design, testing may include high-voltage testing, insulation and continuity checks, tensile testing, flexing, temperature-humidity, salt-spray, and dimensional inspection. Testing procedures can be defined according to cable construction, operating depth, voltage rating, mechanical requirements, and applicable standards. →View the Test Equipment in Use
Ordering Information
Customization: Fully supported
MOQ: project-based negotiation
Standard Lead Time: 3-6 weeks after order confirmation
Custom Development Works
FAQs
1. What is a flat power and control reeling cable?
A flat power and control reeling cable combines power conductors and control cores in one flexible flat cable for moving industrial equipment requiring both power supply and control signal transmission.
2. What is the voltage rating of this flat reeling cable?
This flat power and control reeling cable is rated at 0.6/1kV, making it suitable for compatible low-voltage power and control applications in industrial cable reel systems.
3. What are the advantages of a flat power and control cable over separate cables?
An integrated flat power and control cable combines power and control cores in one cable assembly, helping simplify cable routing and support organized winding and unwinding in compatible reeling systems.
4. Where are flat power and control reeling cables commonly used?
These cables are used in compatible port cranes, overhead and gantry cranes, hoists, and bulk material handling equipment where moving machinery requires combined power and control connections.
5. What conductor and sheath materials are used in this flat reeling cable?
The cable uses Class 5 flexible copper conductors compliant with IEC 60228, spe
