Fiber Optic Umbilical
Fiber Optic Umbilica
Integrated System Solution
Power Transmission
Optical Fiber: Single-Mode/Multi-Mode
Customized Integration
Key Performance Parameters & Customization
Tensile Strength: from 0 to 6 tonnes.
Optical Fiber：Single-Mode/Multi-Mode
Neutral Buoyancy / Zero Buoyancy: Achieved via specialized foamed sheathing materials and construction, minimizing cable weight impact on ROV stability and maneuverability.
Extensive range: 1 to 60 cores
Conductor Cross-Sections: 0.08 mm² to 35 mm²
Other Options: Water Tightness Compound/Sealant/Water-Blocking Yarn

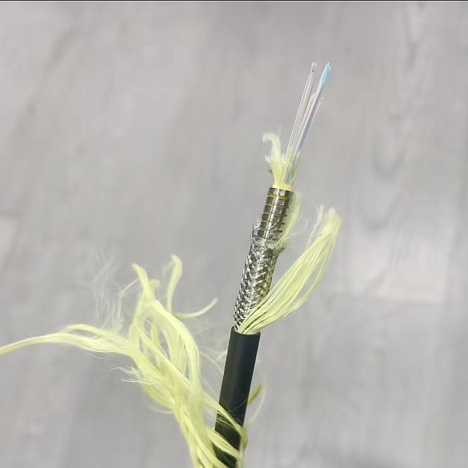

Construction for Reliability
Conductor：Fine-stranded, extra-flexible tinned soft copper wire.
Insulation： TPE, TPE, TPV, XLPE, DPEM
Optical Fiber：Single-Mode/Multi-Mode
Shielding： A combination of tinned copper braid provides 360° EMI/RFI shielding
Tensile Strength Member：Central Kevlar Core, Interstitial Kevlar Fill
Outer Sheath: XLPE
Electronic Data
Custom Tensile: Strength: 0 - 6 tonnes
Working Voltage: 300V ~ 1 kV
Test Voltage: 2000 V
Insulation Resistance: ≥20 MΩ·km (at 20°C）
Minimum Bending Radius: Dynamic: 7.5 × OD, Fixed: 4 × OD
Operating Temperature: -40°C to +105°C
Ordering Information
Minimum Order Quantity (MOQ): 100 meters (or project-based negotiation)
Standard Lead Time: 6-10 weeks after order confirmation
Customization: Fully supported
Engineered for Diverse Subsea Applications
Remotely Operated Vehicles (ROVs)
Underwater Camera & Monitoring Systems
Underwater Survey & Exploration
Marine Science & Research
